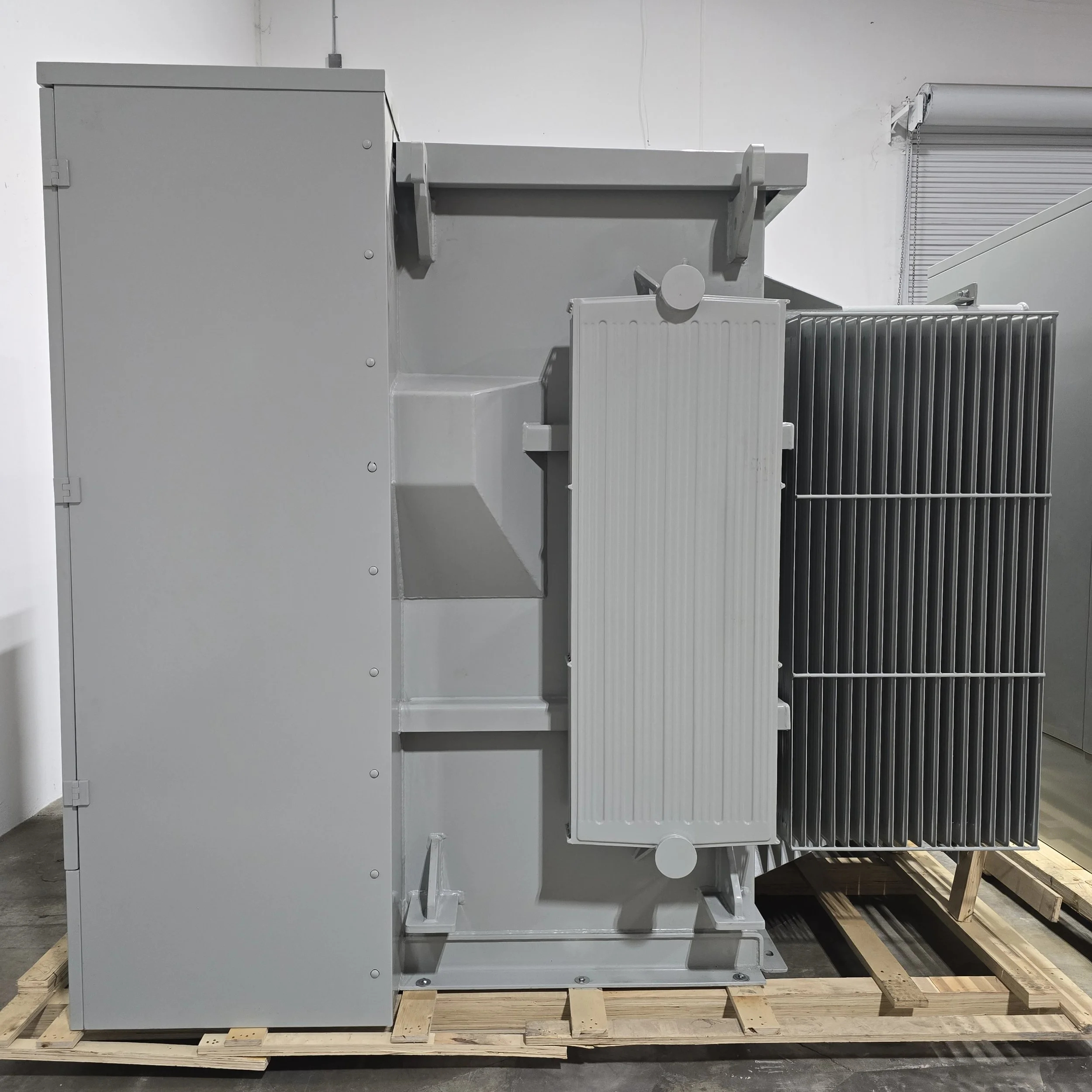

Three Phase Pad Mounted Transformer
Immediate Availability
• Ready for delivery: Stored in our City of Industry, CA warehouse
• Competitive pricing: Approx. 30% lower compared to Virginia / Larson / Eaton / Maddox
• UL Certificate and IEEE Standard

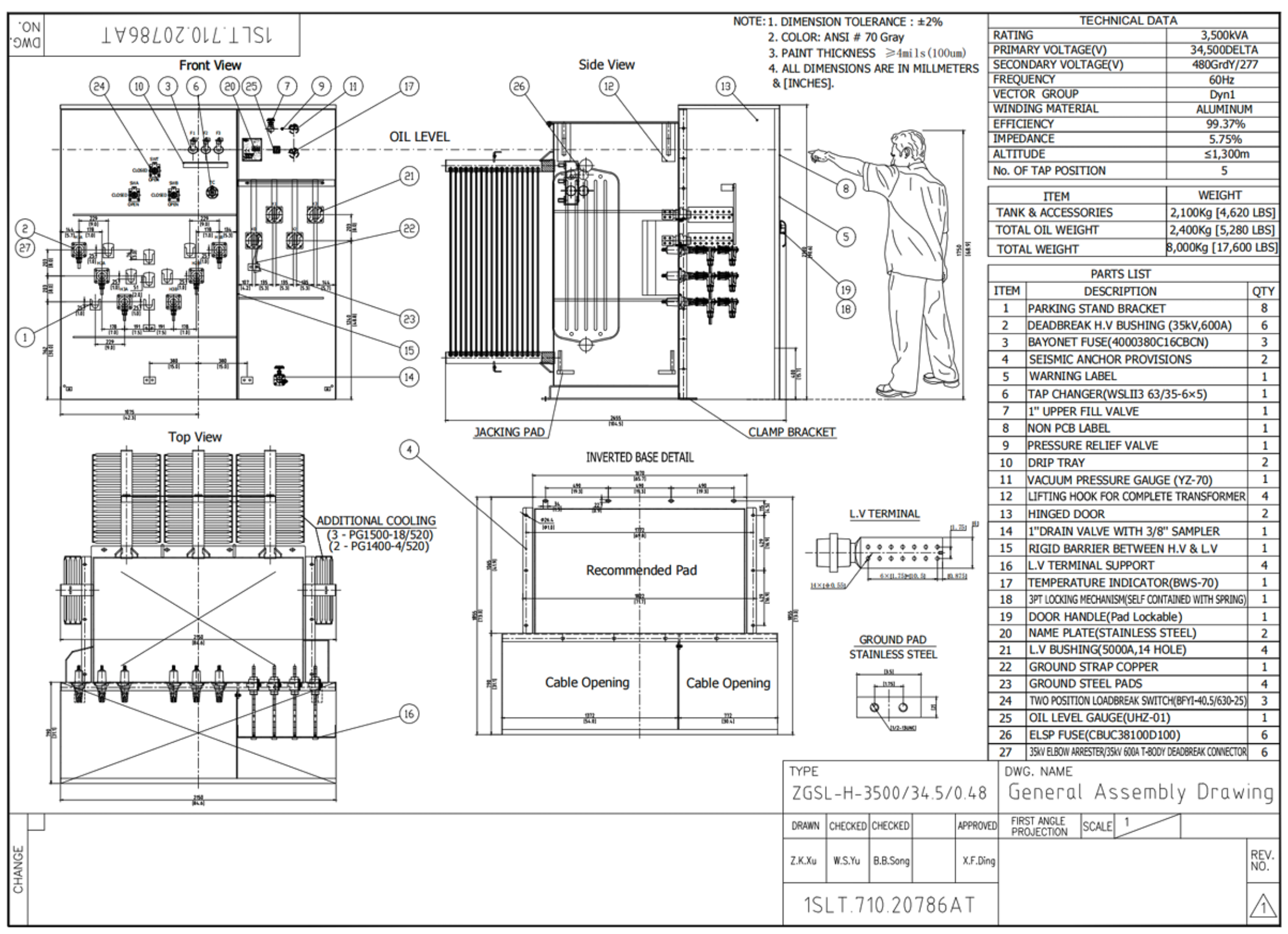

Technical Data
• Outdoor, oil filled
• Rating: 3500kVa
• Primary 34,500 V DELTA
• Secondary 480 V GrdY/277
• Frequency 60 Hz
• Vector Group Dyn1
• Winding Material: Aluminum
• Efficiency: 99.37%
• Impedance: 5.75%
• Altitude: 4265 Feet
• Parking stand bracket
• Dead break HV bushing
• Bayonet fuse
• Seismic anchor provisions
• Tap changer
• Rigid barrier
• L.V Terminal support
• Temperature indicator
• L.V bushing
• Load-break switch
• Oil level gauge
• ELPS fuse
• Elbow arrester
• T-body dead-break connector
Contact for more details
JOHN CHETKIN
(949) 295-2415
